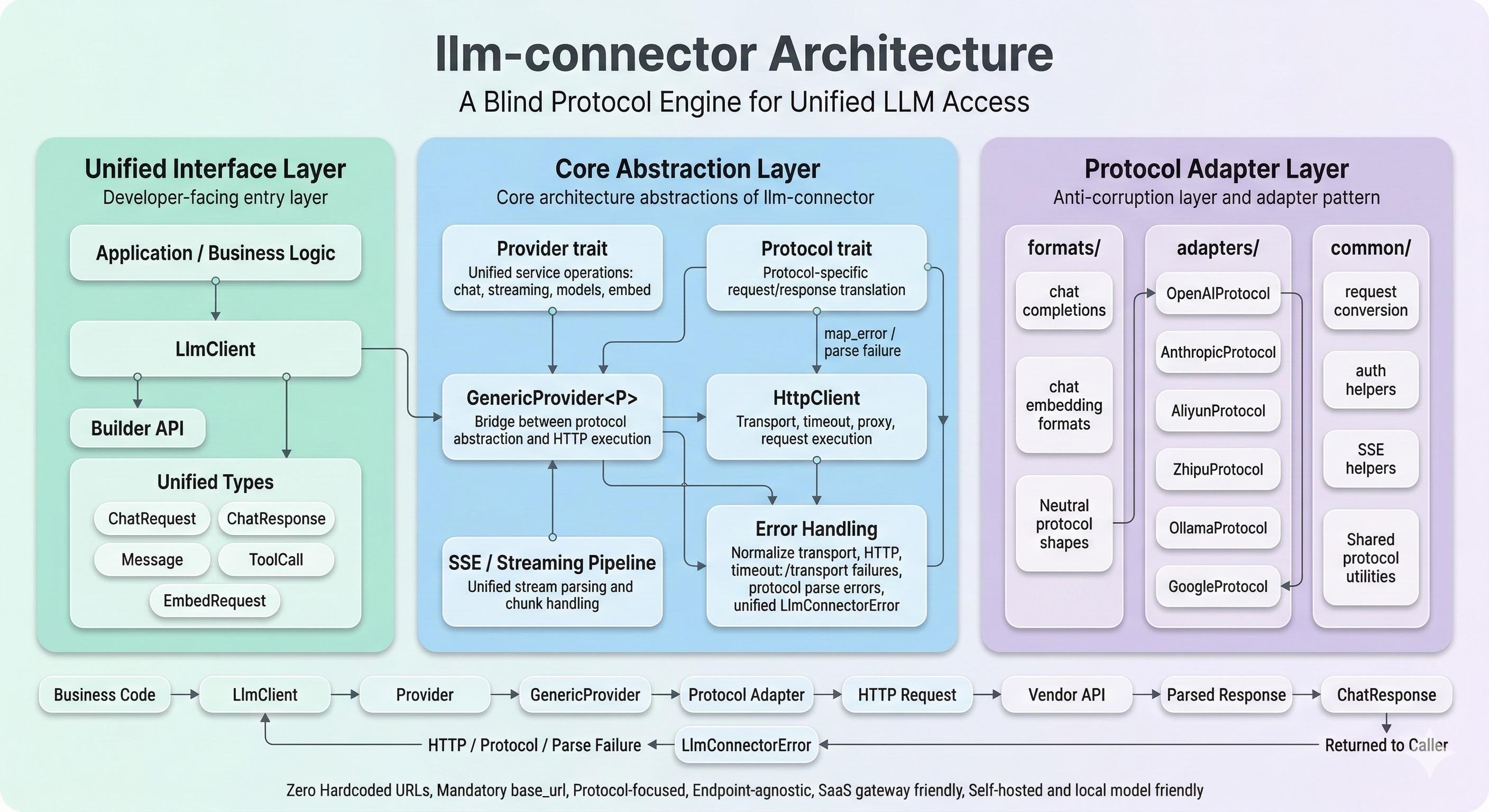

Architecture

llm-connector is designed to provide a unified, type-safe interface for various LLM providers while handling the differences in their underlying protocols.

Core Design Principles

1. Unified Interface: A single LlmClient struct that can be instantiated with any backend provider.
2. Protocol Abstraction: Separation between Provider (high-level logic) and Protocol (request/response formatting).
3. Unified Output: All providers flow into a StreamingResponse unified format, simplifying downstream consumption.

Unified Output Format

Regardless of the provider (OpenAI, Anthropic, Tencent, etc.), all responses are normalized.

pub struct StreamingResponse {
    pub content: Option<String>,
    pub reasoning_content: Option<String>, // For reasoning models (o1, R1)
    pub tool_calls: Option<Vec<ToolCall>>,
    pub usage: Option<Usage>,
    pub finish_reason: Option<FinishReason>,
    // ...
}

This ensures that switching providers does not require changing your response handling logic.

Multi-Modal Support

The library supports multi-modal inputs (Text + Image) natively via the MessageBlock enum.

pub enum MessageBlock {
    Text { text: String },
    Image { source: ImageSource },     // Base64
    ImageUrl { image_url: ImageUrl },  // URL
}

• OpenAI: Converted to content: [{type: "text"}, {type: "image_url"}]
• Anthropic: Converted to content: [{type: "text"}, {type: "image"}]
• Text-Only Providers: Images are automatically stripped or result in an error (depending on implementation).

Streaming Architecture

Streaming is handled via reqwest and eventsource-stream.

• Parsing: Each provider has a parse_stream_response method.
• Normalization: Provider-specific SSE events are mapped to the unified StreamingResponse.
• Reasoning: For reasoning models (DeepSeek R1, Volcengine), reasoning_content is extracted from specific fields (e.g., delta.reasoning_content) and exposed separately.

Configuration System

The ConfigurableProtocol allows creating new providers purely through configuration, without writing new code, for any OpenAI-compatible service.

ProtocolConfig {
    endpoints: EndpointConfig {
        chat_template: "{base_url}/v1/chat/completions".to_string(),
        ..
    },
    auth: AuthConfig::Bearer,
}
